R/RA/RR

MESSA A VENTO TRADIZIONALE IDRAULICA

Dalla fusione tra l’esperienza del brand RM nel settore delle macchine tradizionali e le migliorie apportate dal team R&D di Bauce, nasce la nuova messa a vento tradizionale idraulica, disponibile in 3 versioni: R, RA e RR.

HYDRAULIC COMBINED SAMMYING AND SETTING OUT MACHINE

From the fusion between the experience of RM brand on the traditional machines and the improvements made by Bauce R&D team, arises the new traditional setting out machine, available in 3 versions: R, RA and RR

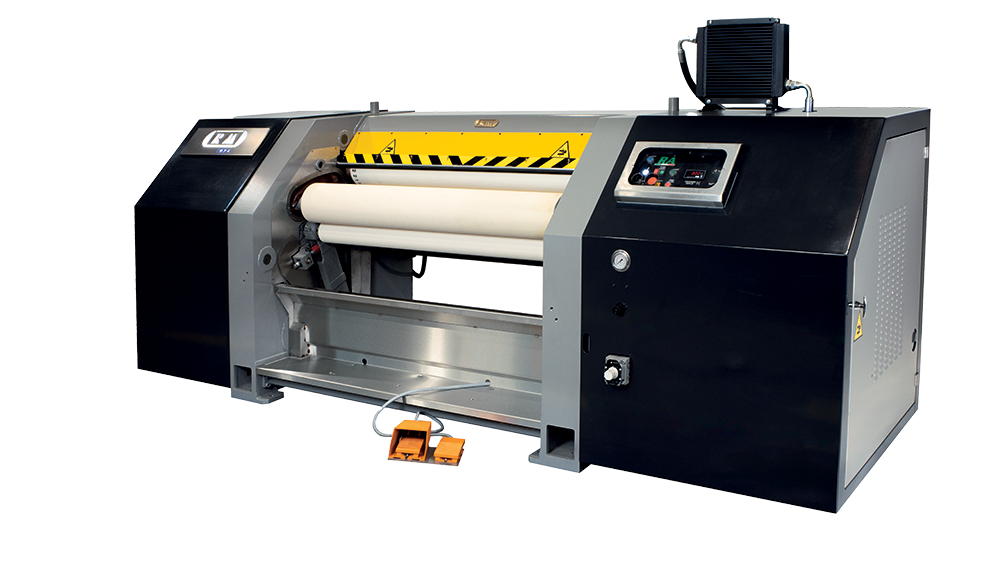

Vista 3D
3D View

Macchina chiusa
Closed machine

A - Cilindro a spirale
B - Cilindro superiore
C - Cilindro gommato d'appoggio
D - Cilindro gommato ausiliario
E - Barriera sensibile elettronica
F - Barriera immateriale a raggi infrarossi
G - Carter a scomparsa del cilindro a spirale
H - Pedali

A - Spiral Cylinder
B - Upper cylinder
C - Rubber cylinder
D - Auxiliar rubber cylinder
E - Electronic sensitive barrier
F - Immaterial infrared barrier
G - Retractable carter for spiral cylinder
H - Pedals

Macchina aperta
Open machine

Versioni
Versions

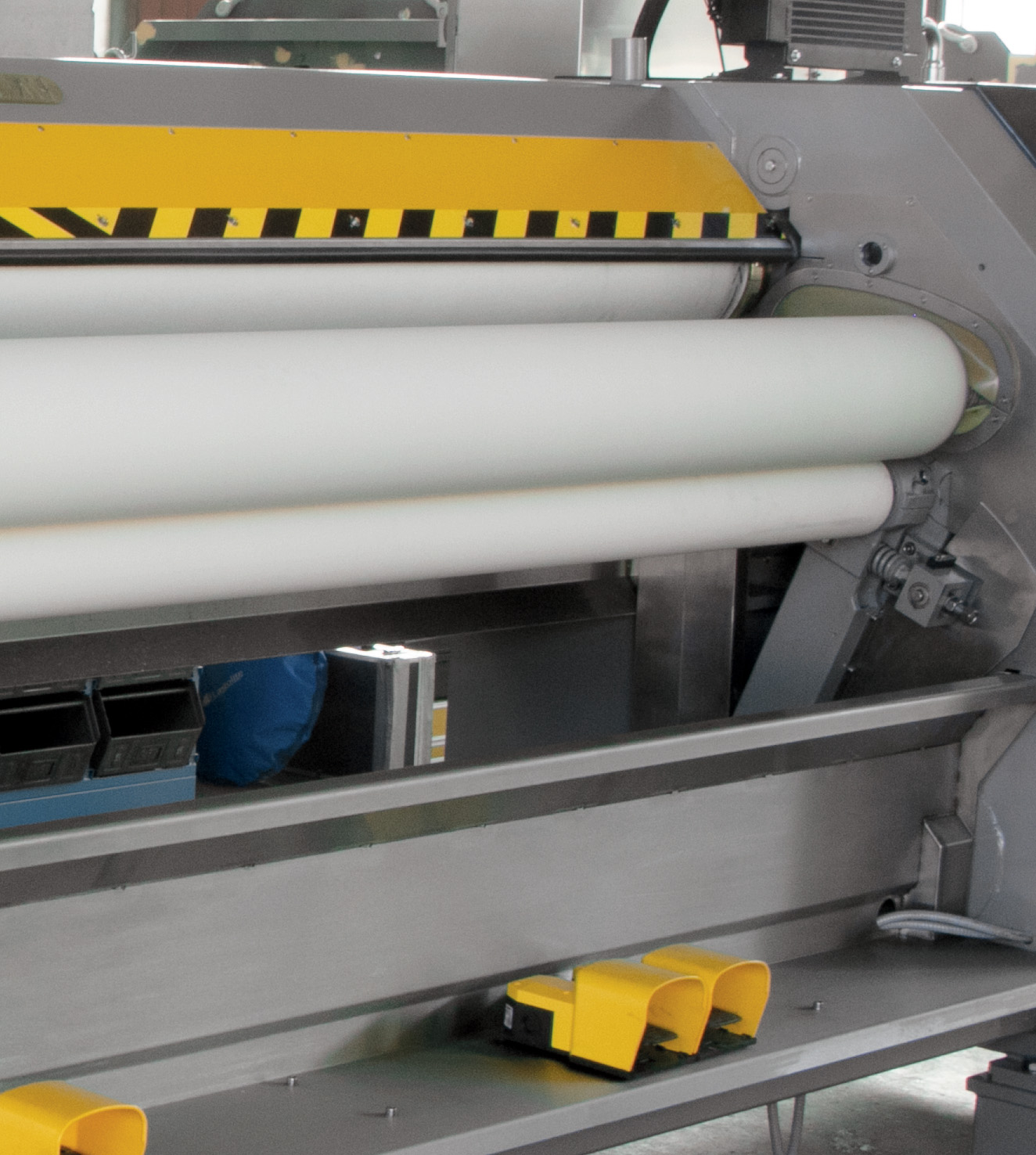

Particolare versione R con cilindro pressatore in ebanite
Specific R version with ebonite sammying cylinder

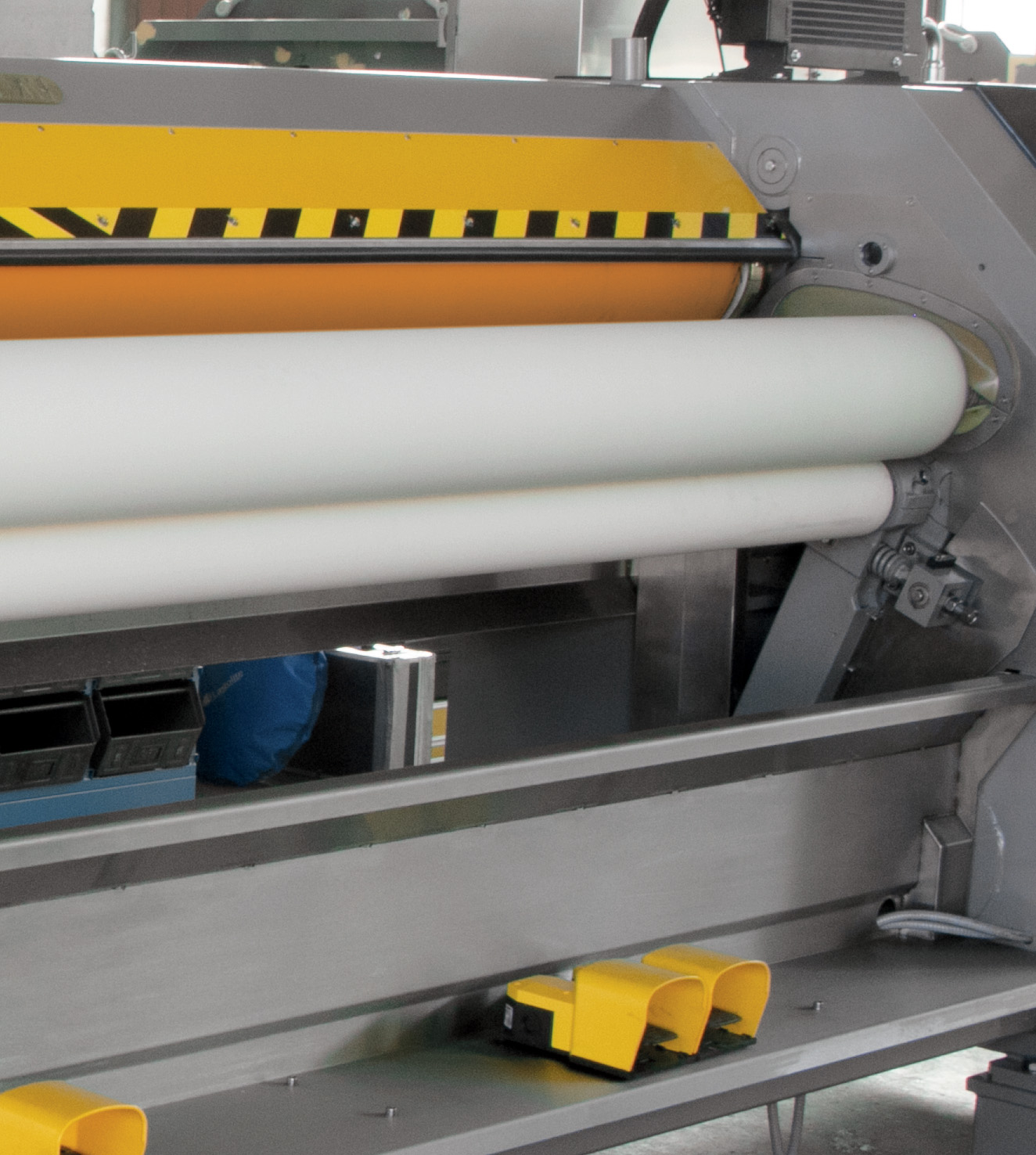

Particolare versione RA con cilindro pressatore a feltro
Specific RA version with felt sammying cylinder

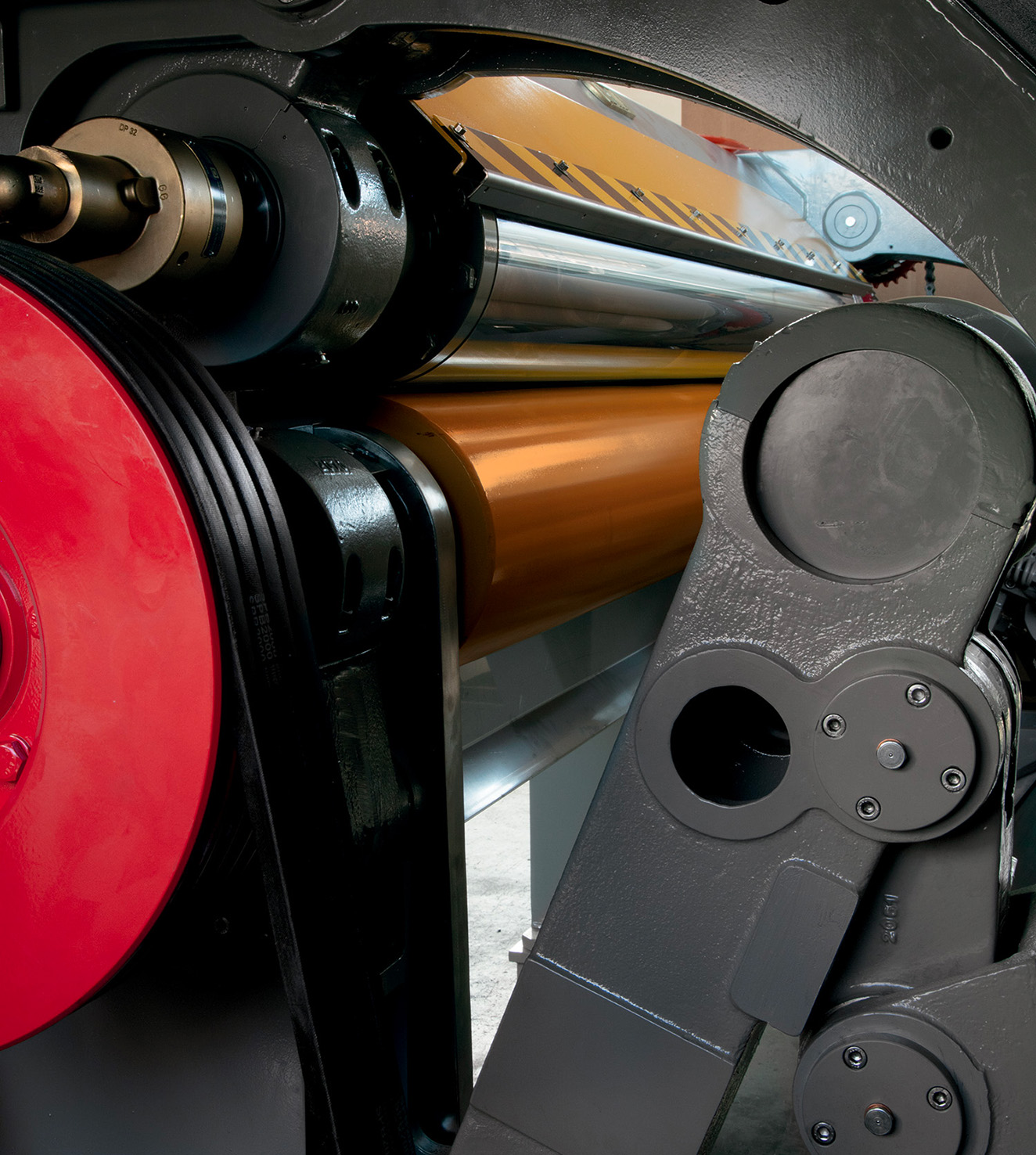

Particolare versione RR con cilindro pressatore cromato lucido
Specific RR version with heated chromed sammying cylinder


DATI TECNICI
TECHNICAL DATA

R/RA/RR
LARGHEZZA UTILE / WORKING WIDTH mm 1600 1800 2100 2400 2700
ALTEZZA (A) / HEIGHT (A) mm 1950 1950 1950 1950 1950
LUNGHEZZA (B) / LENGTH (B) mm 1650 1650 1650 1650 1650
LARGHEZZA (C) / LENGTH (C) mm 4250 4450 4750 5050 5350
POTENZA INSTALLATA / INSTALLED POWER kW 29 32 36 36 36
VELOCITÀ DI LAVORO / WORKING SPEED m/min 0-35 0-35 0-35 0-35 0-35
POTENZA MOTORE PRINCIPALE / MAIN MOTOR POWER HP (kW) 15(11) 18,5(15) 22(15) 22(18,5) 22
