Also available in hydraulic version

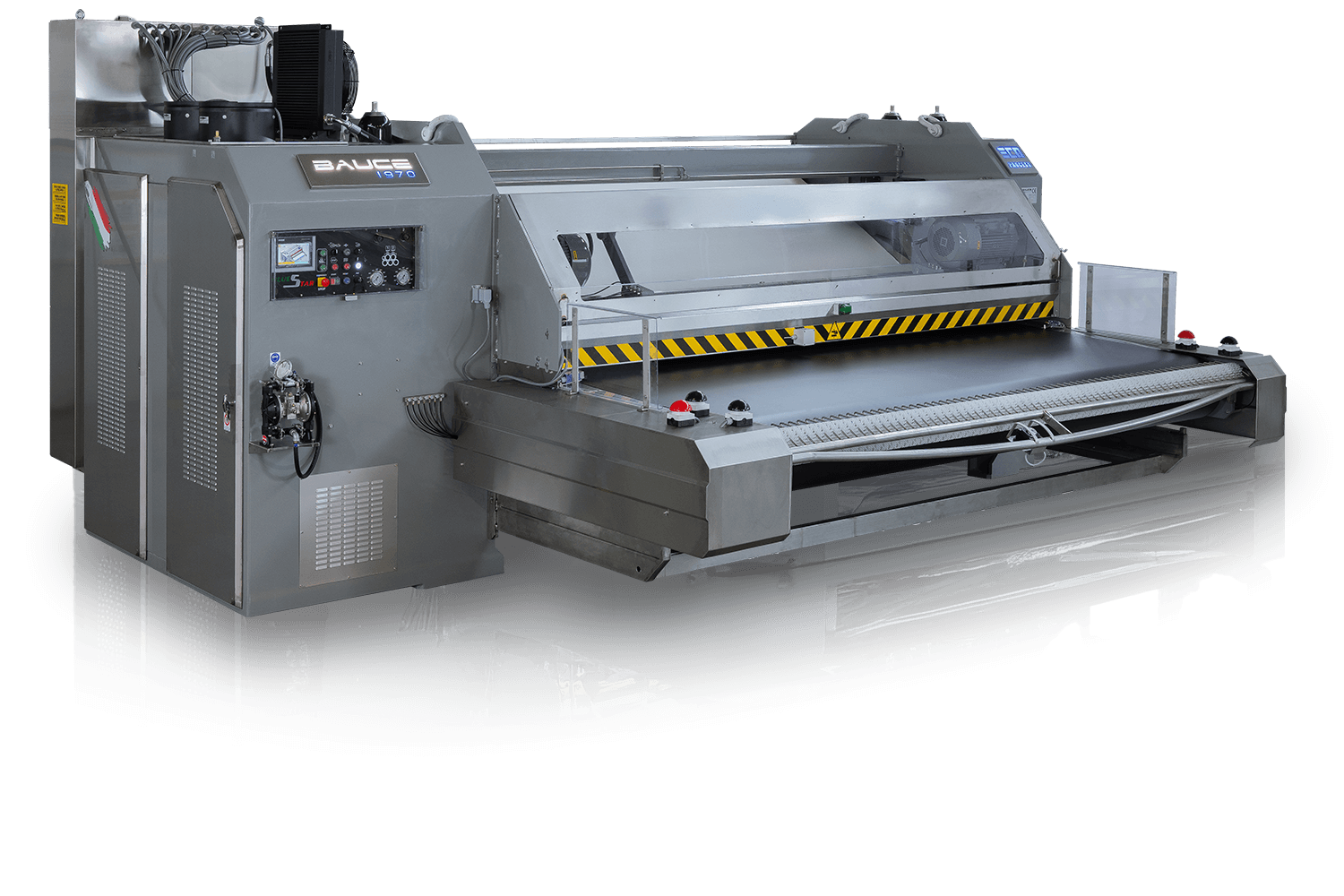

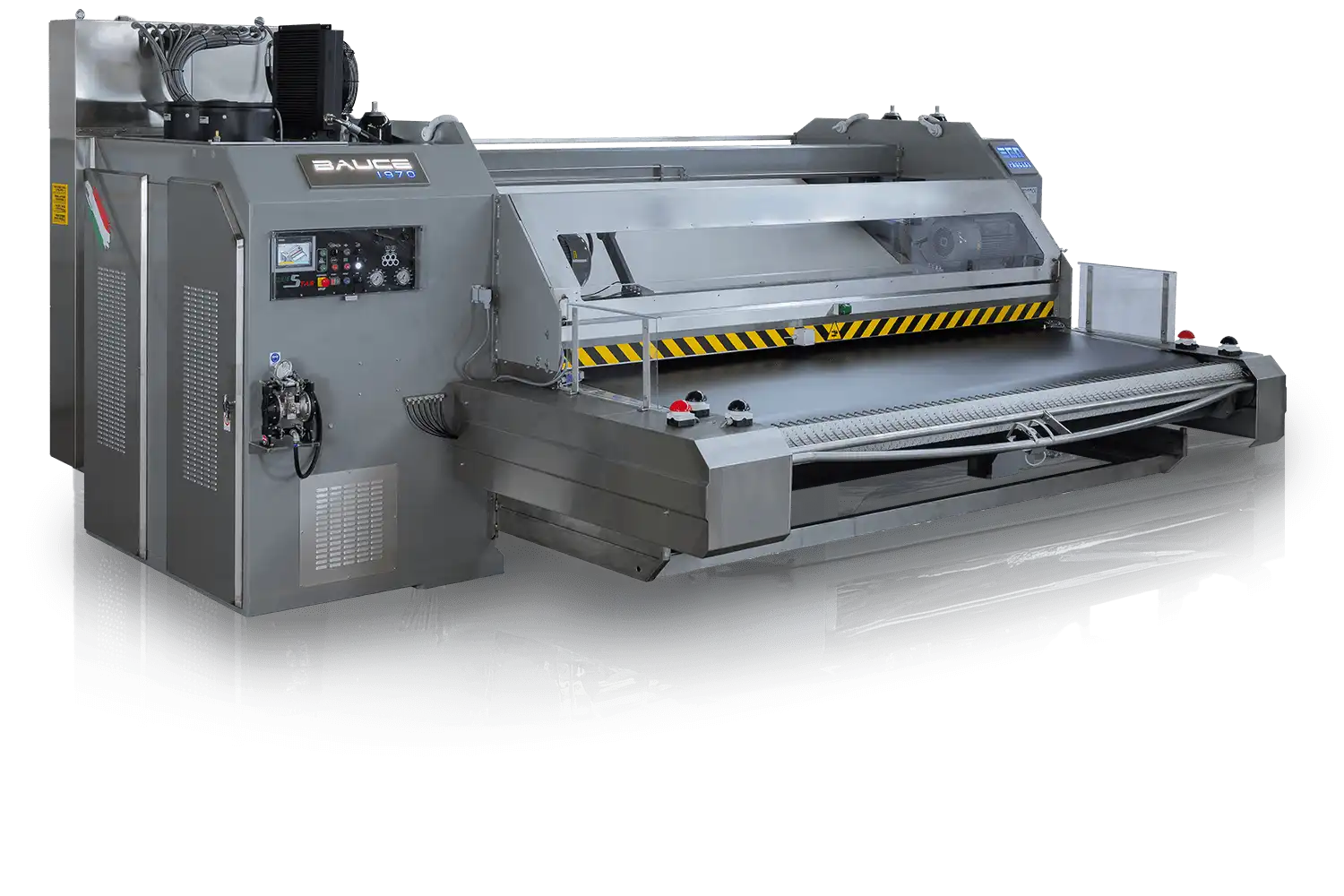

5 rollers sammying machine allows to reduce the energetic wastes thanks to the new "E-Power" technology. It also permits a better performance thanks to the speed of the new completely electric motorization.
Belly To Belly, Butt to Neck, Sides modalities
With this function is possible to set the three way to work
Receipt Saving
The machinery can be set automatically by selection of saved receipt
Blade cylinder washing (Optional)
With this function is possible to activate automatic blade washing system at each color change
Version Versus
2 blade cylinders butt to neck mode and belly to belly function
Technical data
| Working width | mm | 3000 | 3200 | 3400 |
|---|---|---|---|---|
| Speed | m/min | 12/30 | 12/30 | 12/30 |
| Hydraulic pump pressure | bar | 50/110 | 50/110 | 50/110 |
| Installed power | kW | 1S: 74 Versus: 87 | 1S: 74 Versus: 87 | 1S: 74 Versus: 87 |
| Max felt pressure | bar | 1° coppia / 1st point 8000 | 1° coppia / 1st point 8000 | 1° coppia / 1st point 8000 |
| Lenght | mm | 4390 | 4390 | 4390 |
| Height | mm | 2750 | 2750 | 2750 |
| Length | mm | 5050 | 5250 | 5450 |
| Qty oil inside hydraulic unit | Kg | 90 | 90 | 90 |
| Pneumatic supply | bar | 6 | 6 | 6 |
| Air consumption | Lt/m | 0,1 | 0,1 | 0,1 |
| Water connection | bar | 2 | 2 | 2 |
| Water consumption | Lt/m | 105 | 110 | 120 |
| Total net weight | Kg | 23500 | 25000 | 26000 |
| Total weight | Kg | 23550 | 25050 | 26050 |
| Volume | m3 | 29 | 30 | 31 |
