Bauce new through feed setting out and sammying is designed thanks to 45 years’ experience on setting out and samming machinery. This technology provide higher quality results compared with traditional systems.

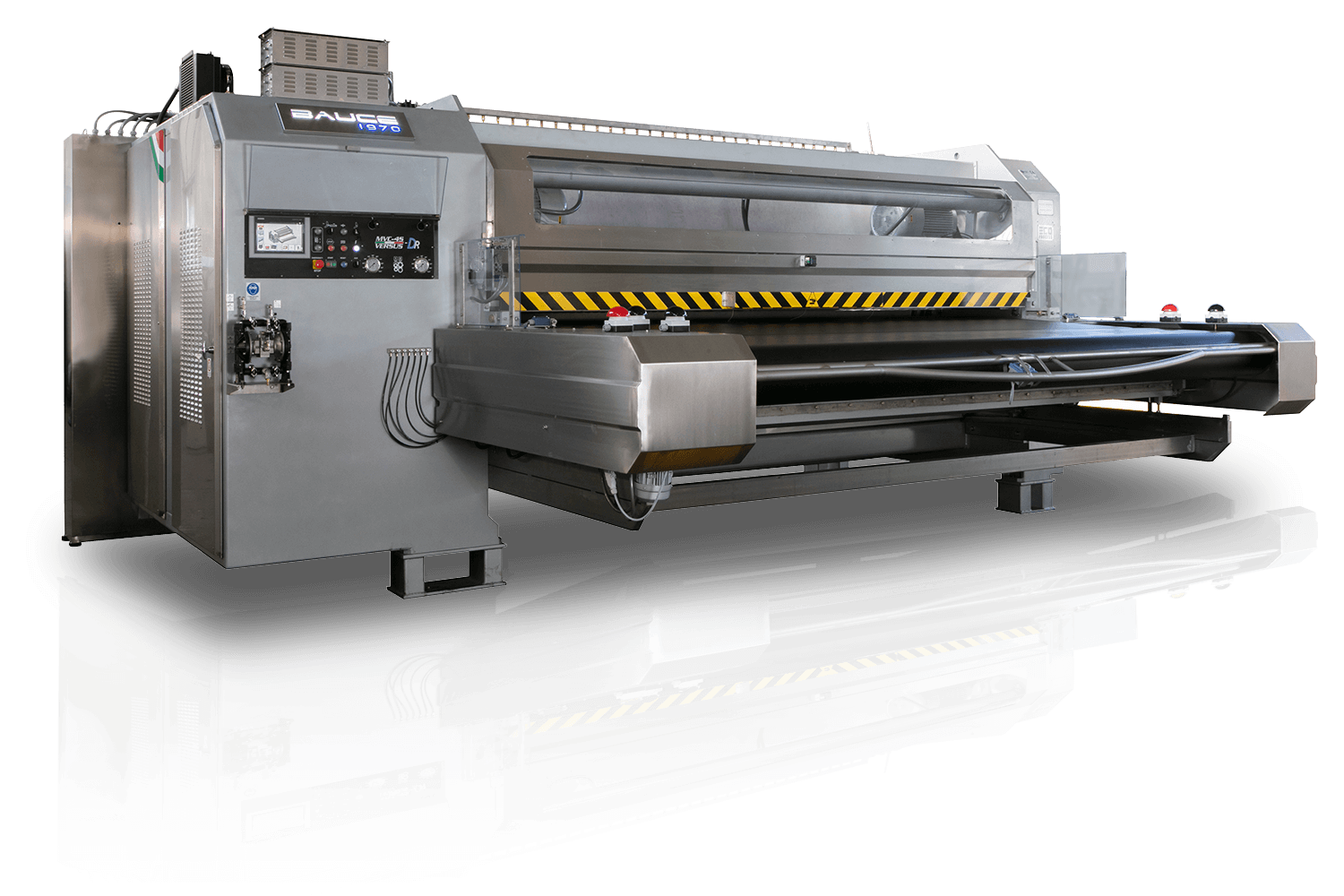

MVC 4S VERSUS DR E-POWER designed for setting out and sammying process with 2 blade cylinder + 4 sammying cylinder + 2 blade cylinder (also available with hot cylinder in the exit of machinery).
MVC 4S VERSUS DR E-POWER is provided with 2 independent blade cylinders installed after sammmying by felts unit, operating on the leather by increasing the area and removing felts's mark and an increasing of opening of the leather of 2-3%.

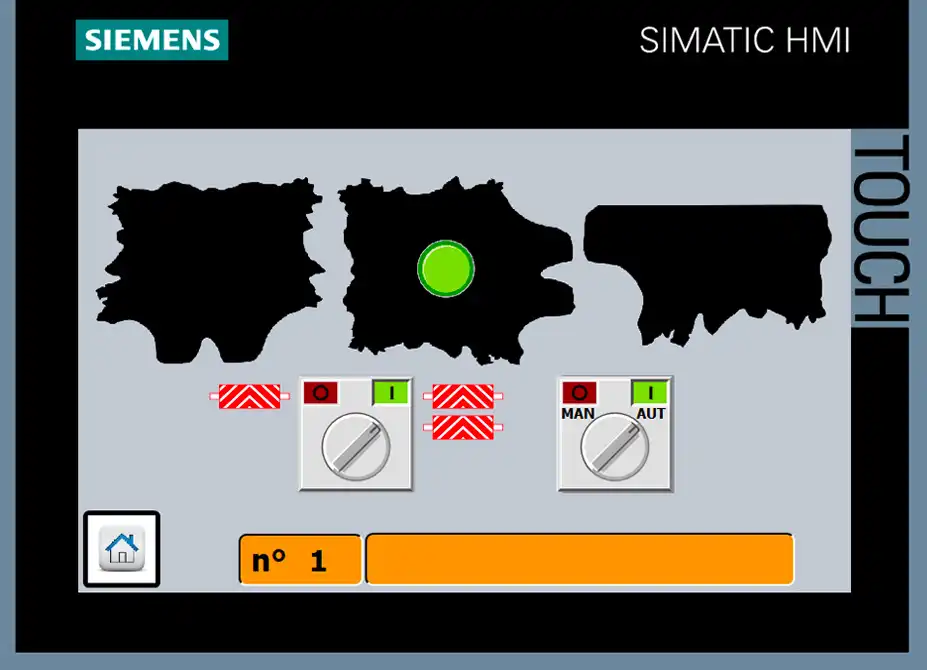

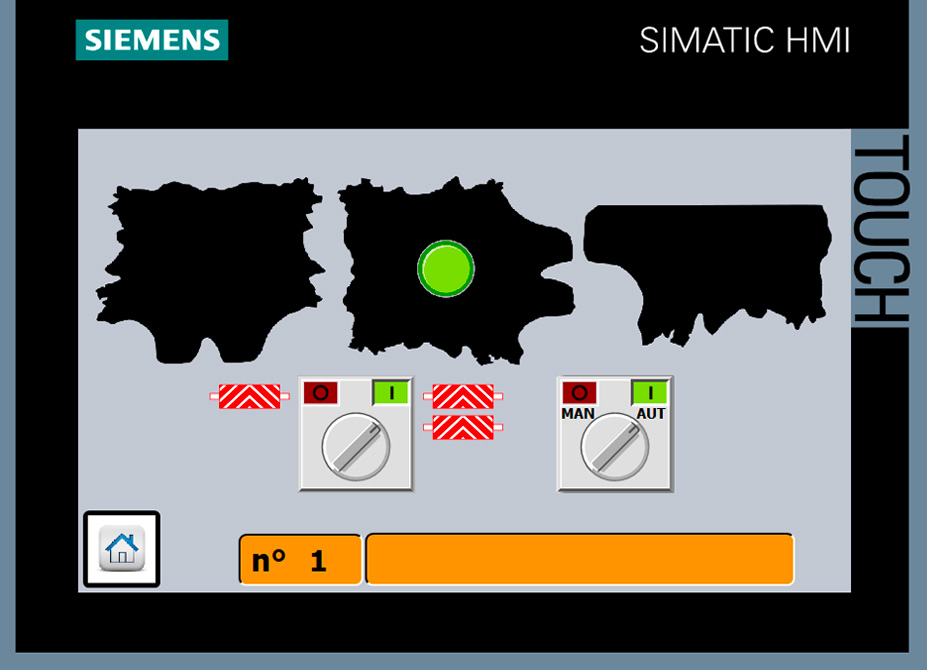

Belly To Belly, Butt to Neck, Sides modalities
With this function is possible to set the three way to work

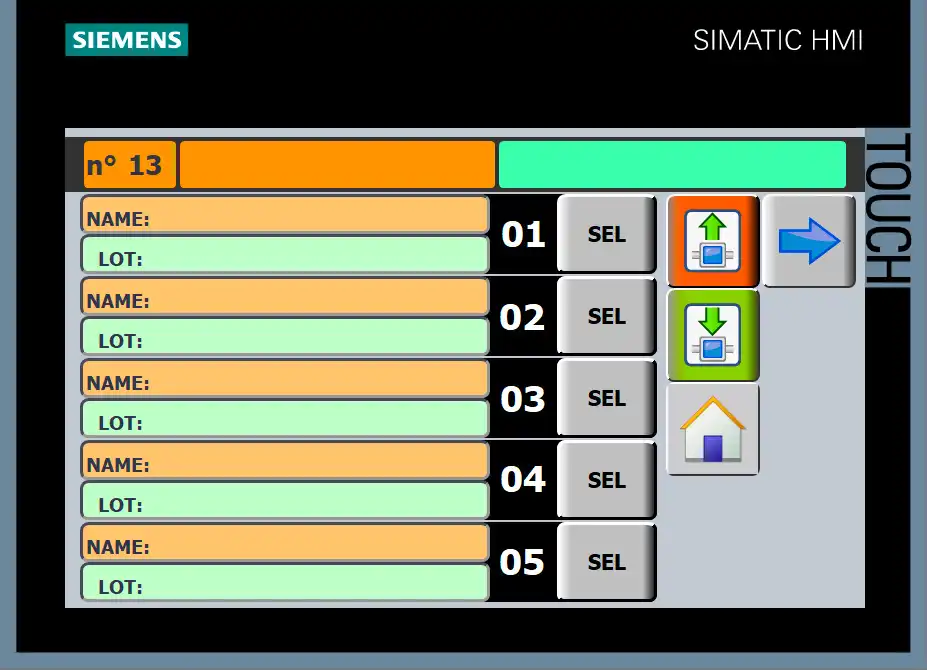

Receipt Saving
The machinery can be set automatically by selection of saved receipt

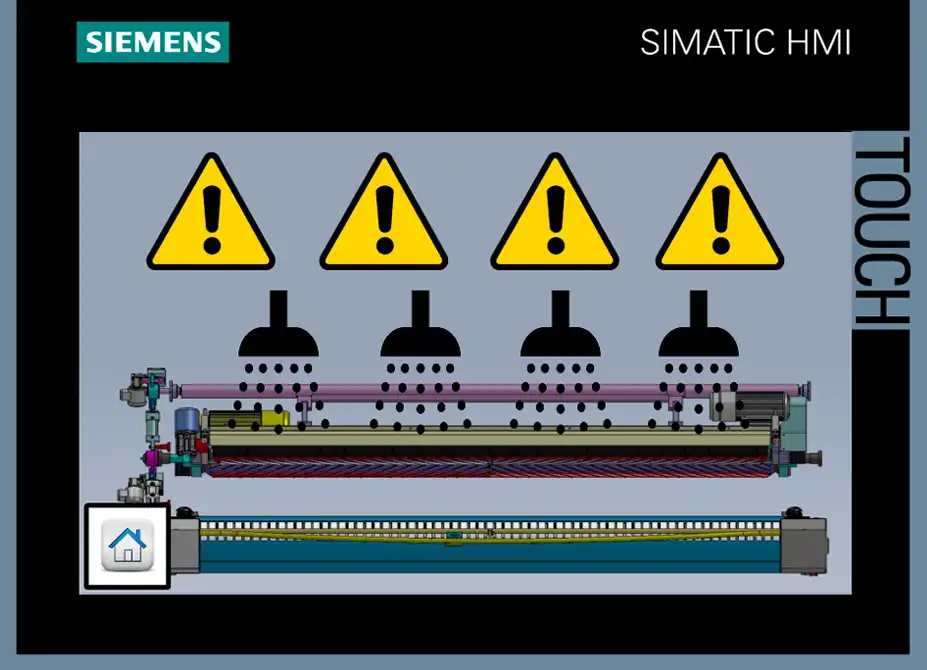

Blade cylinder washing (Optional)
With this function is possible to activate automatic blade washing system at each color change

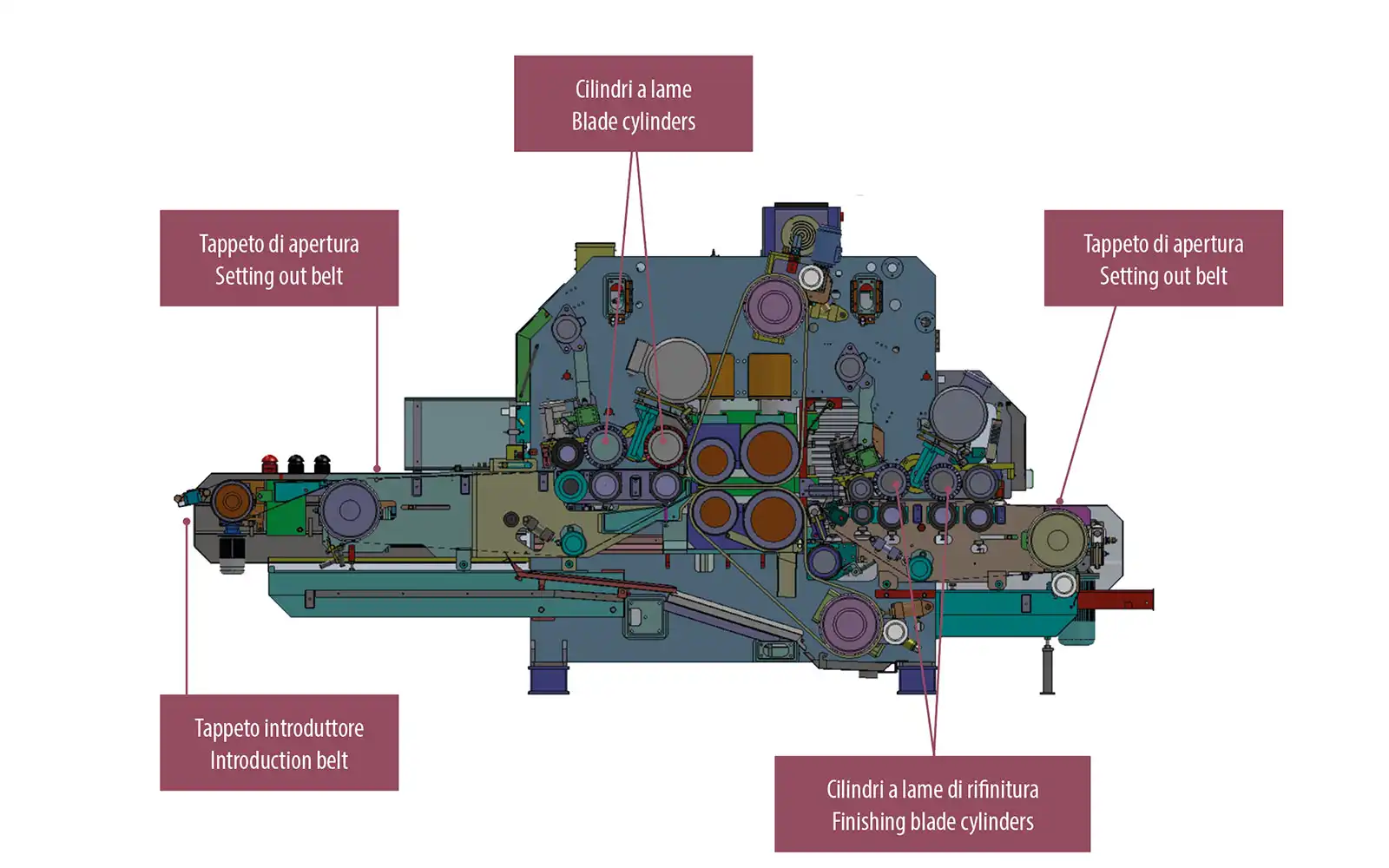

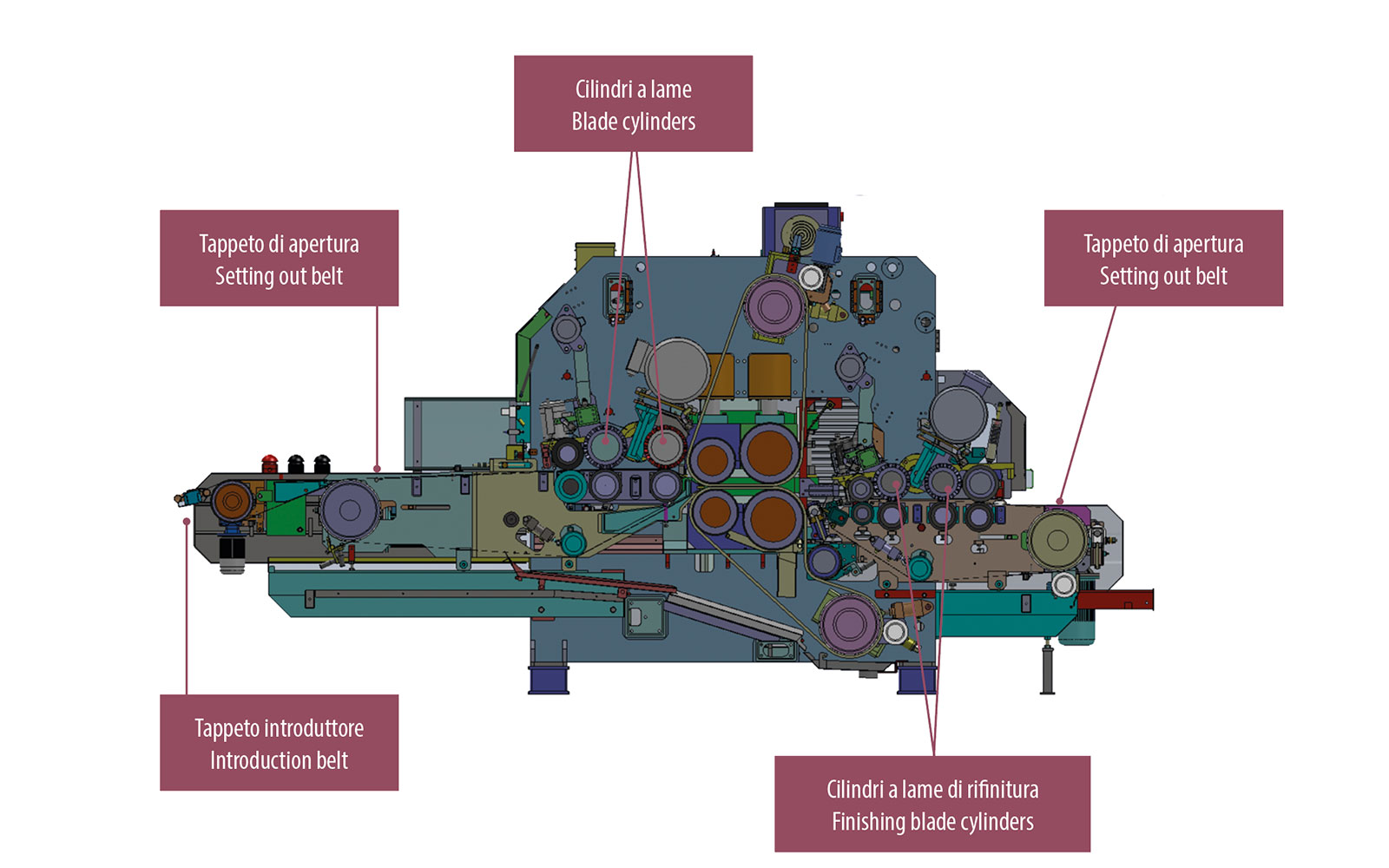

Section

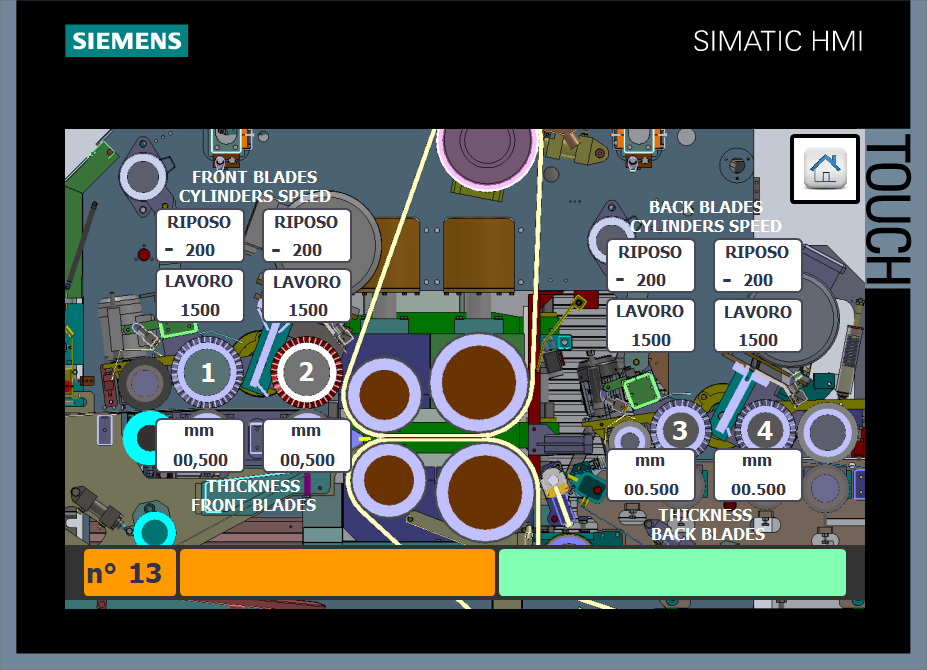

Blade cylinders adjustments
This function is to set the thickness of the leather

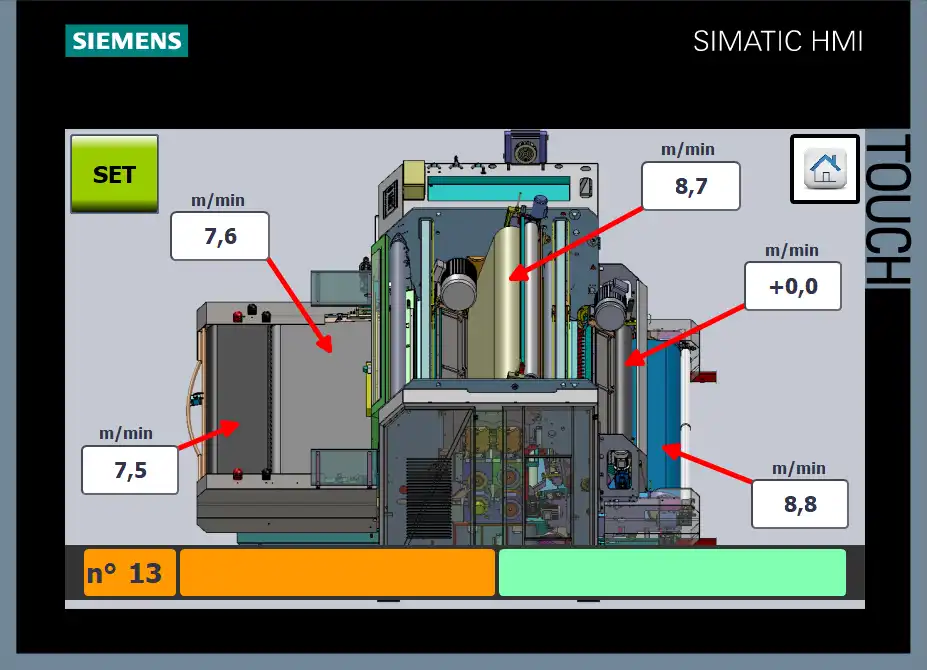

Speed adjustments
This function is to set the speed of belts and felts, in order to increase the opening of the leather thanks to the difference of entrance and exit
Technical data
| Working width | mm | 2500 | 3100 | 3300 | 3500 |
|---|---|---|---|---|---|
| Speed | m/min | 5/17 | 5/17 | 5/17 | 5/17 |
| Installed power | kW | 87 | 87 | 87 | 87 |
| Pressure | bar | 65 / 75 | 65 / 75 | 65 / 75 | 65 / 75 |
| Deepth | mm | 5100 | 5100 | 5100 | 5100 |
| Height | mm | 2670 | 2670 | 2670 | 2670 |
| Length | mm | 4390 | 4990 | 5190 | 5390 |
| Oil | Kg | 90 | 90 | 90 | 90 |
| Pneumatic supply | bar | 6 | 6 | 6 | 6 |
| Air consumption | Lt/min | 150 | 200 | 250 | 300 |
| Water connection | bar | 2 | 2 | 2 | 2 |
| Water consumption | Lt/min | 81 | 86 | 88 | 90 |
| Total net weight | Kg | 16700 | 20900 | 22300 | 23700 |
| Total weight | Kg | 16800 | 21000 | 22400 | 23800 |
| Volume | m3 | 24 | 26 | 27 | 28 |
