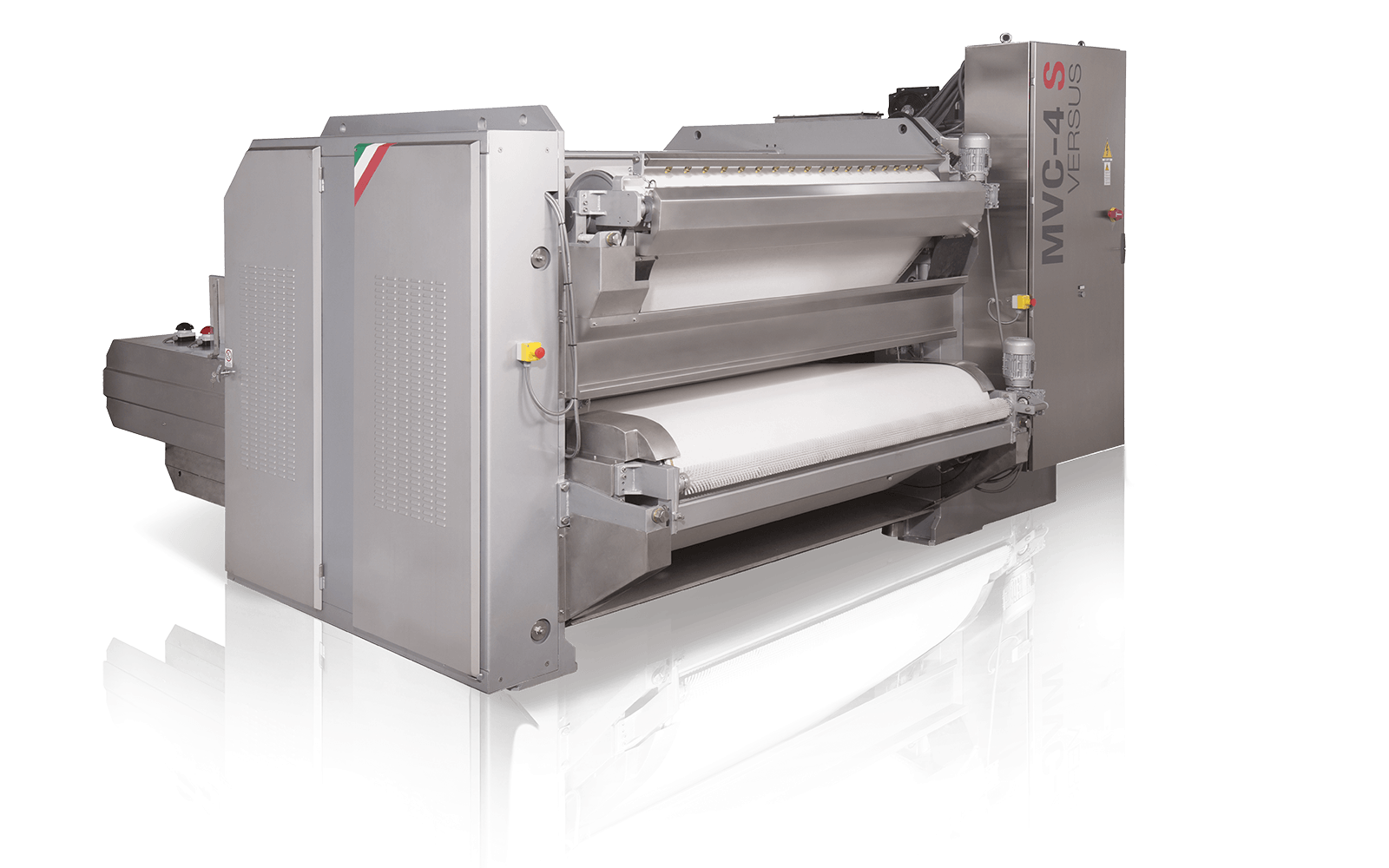

Machine for through-feed setting out and sammying
Designed to process calf hide, sheep-goat and small-sized hides.

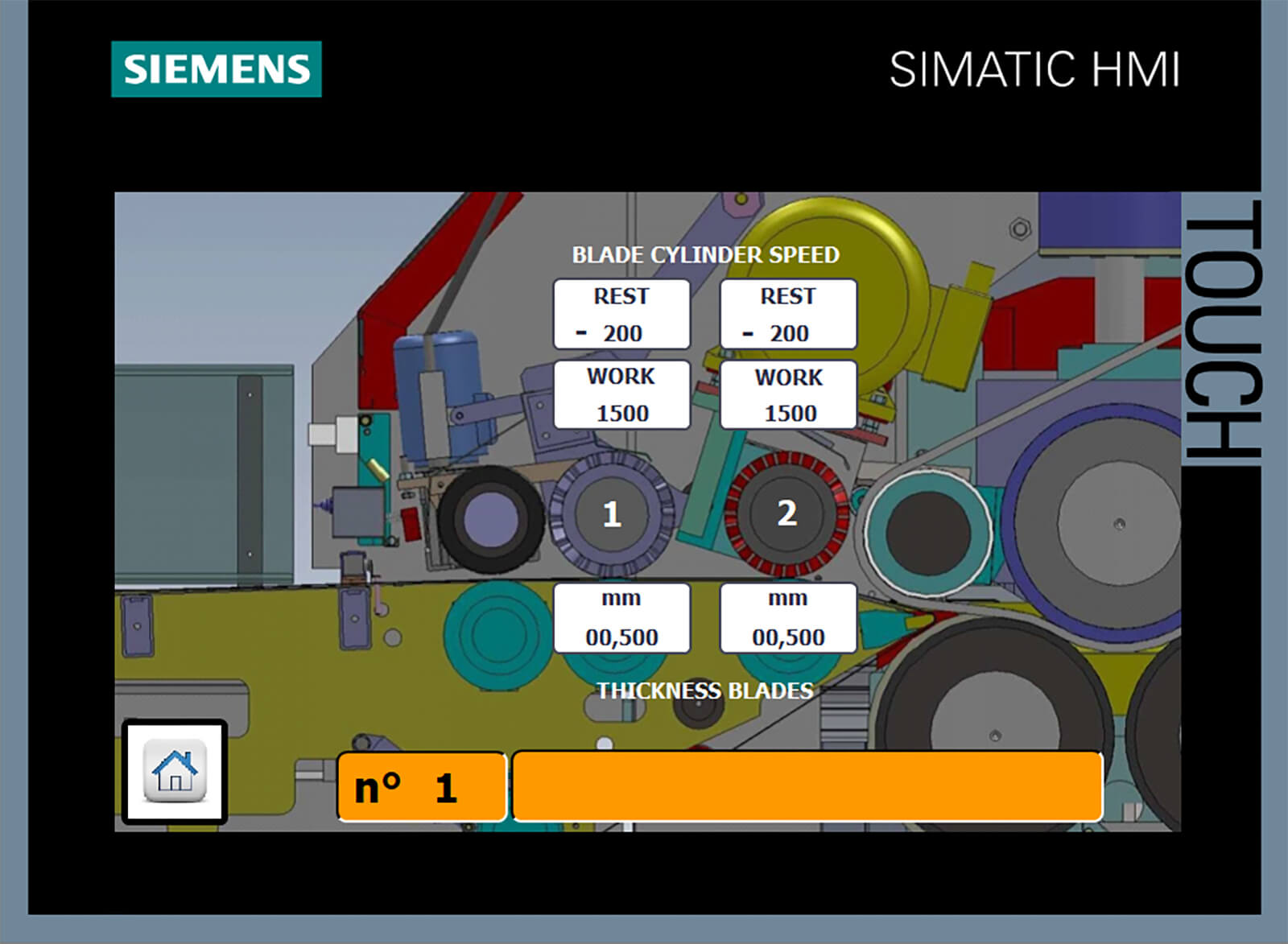

Thickness adjustment system
This function let possible to adjust the thickness of the leathers and the rotation speed of blade cylinders from 500 to 1500 rpm

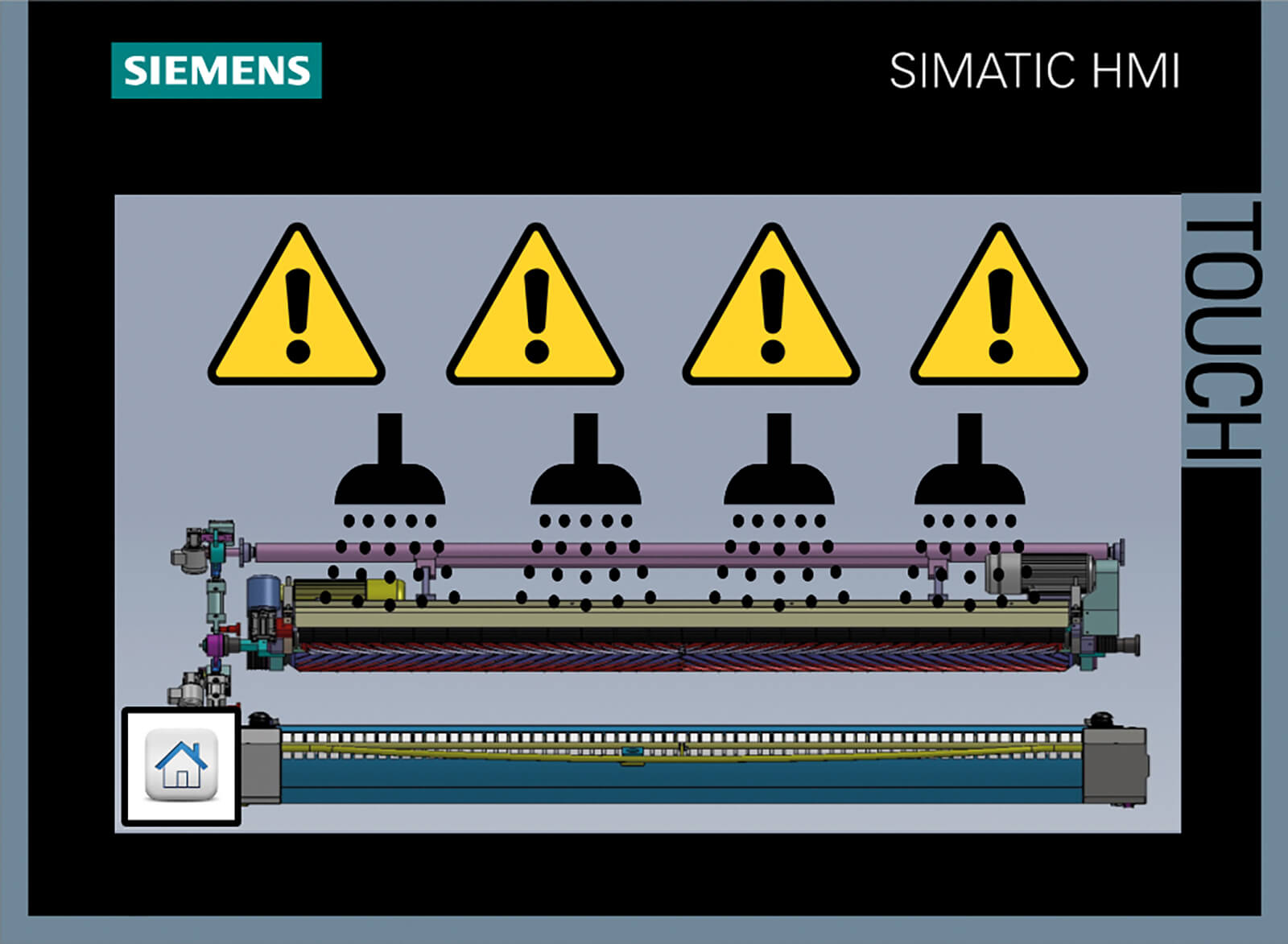

Blade cylinder washing
With this function is possible to activate automatic blade washing system at each color change

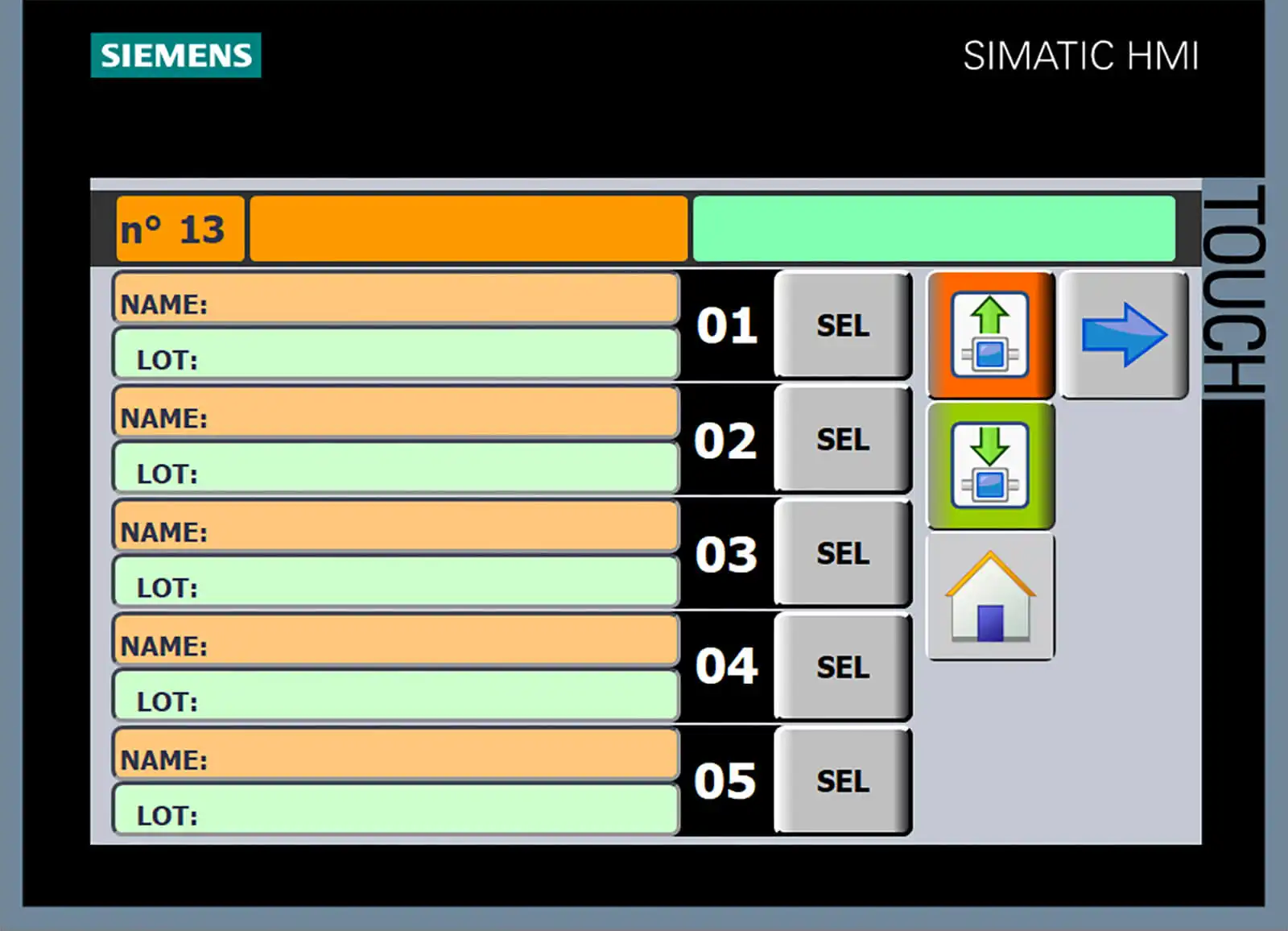

Receipt Saving
It is possible to automatic set machinery by select the previous save receipt
Heat cylinder setting
Technical data
| Working width | mm | 1800 | 2000 | 2200 |
|---|---|---|---|---|
| Speed | m/min | 5/17 | 5/17 | 5/17 |
| Installed power | kW | 40 | 40 | 40 |
| Pressure | bar | 65 / 75 | 65 / 75 | 65 / 75 |
| Deepth | mm | 3850 | 3850 | 3850 |
| Height | mm | 2650 | 2650 | 2650 |
| Length | mm | 3840 | 4040 | 4240 |
| Oil | Kg | 60 | 60 | 60 |
| Pneumatic supply | bar | 6 | 6 | 6 |
| Air consumption | Lt/m | 0.1 | 0.1 | 0.1 |
| Water connection | bar | 2 | 2 | 2 |
| Water consumption | Lt/m | 50 | 50 | 50 |
| Total net weight | Kg | 9500 | 10500 | 11500 |
| Total weight | Kg | 9600 | 10600 | 11600 |
| Volume | m3 | 18 | 19 | 20 |
