The innovative technology:

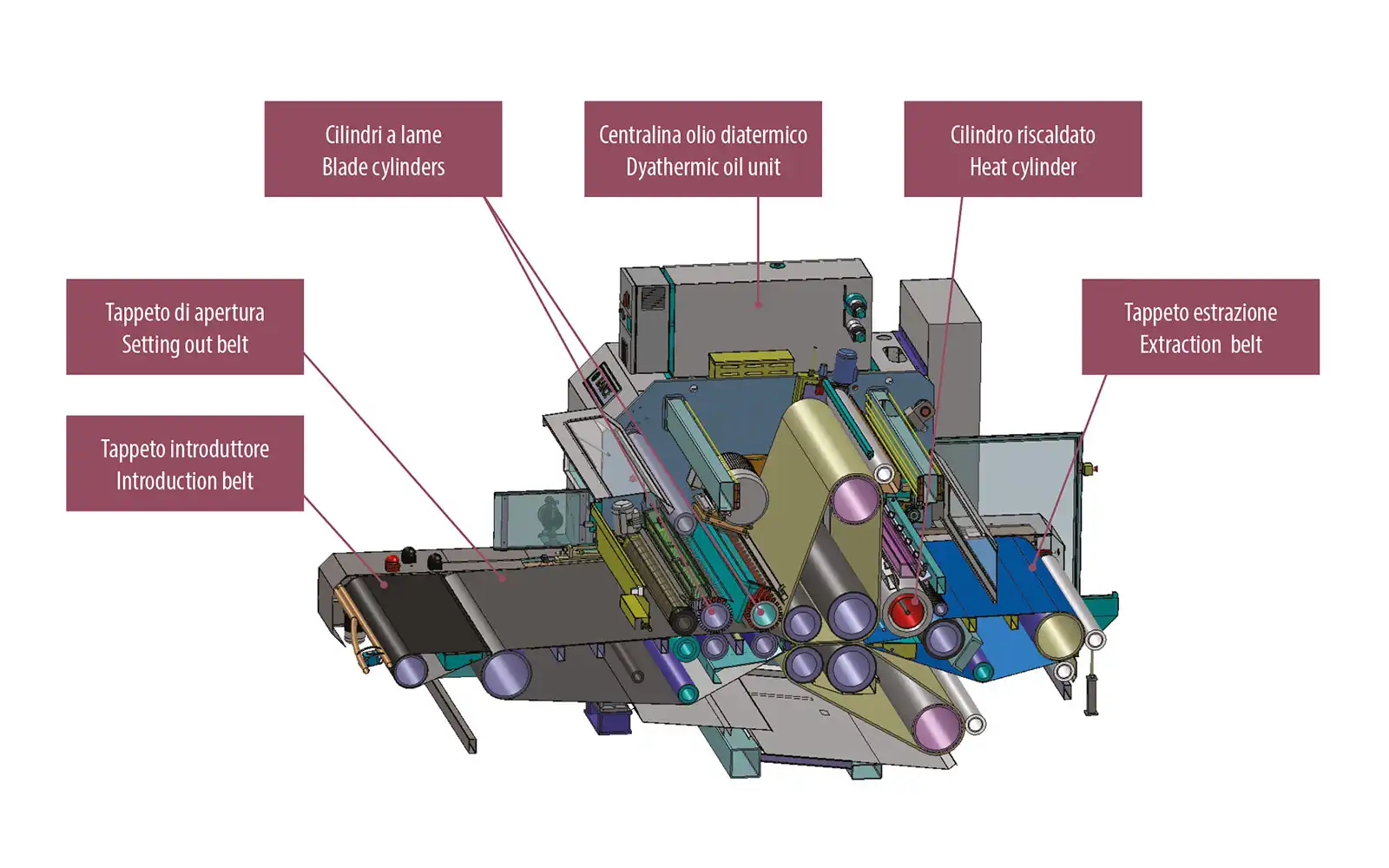

Heat cylinder installed after sammying cylinders to
improve the leather grain quality

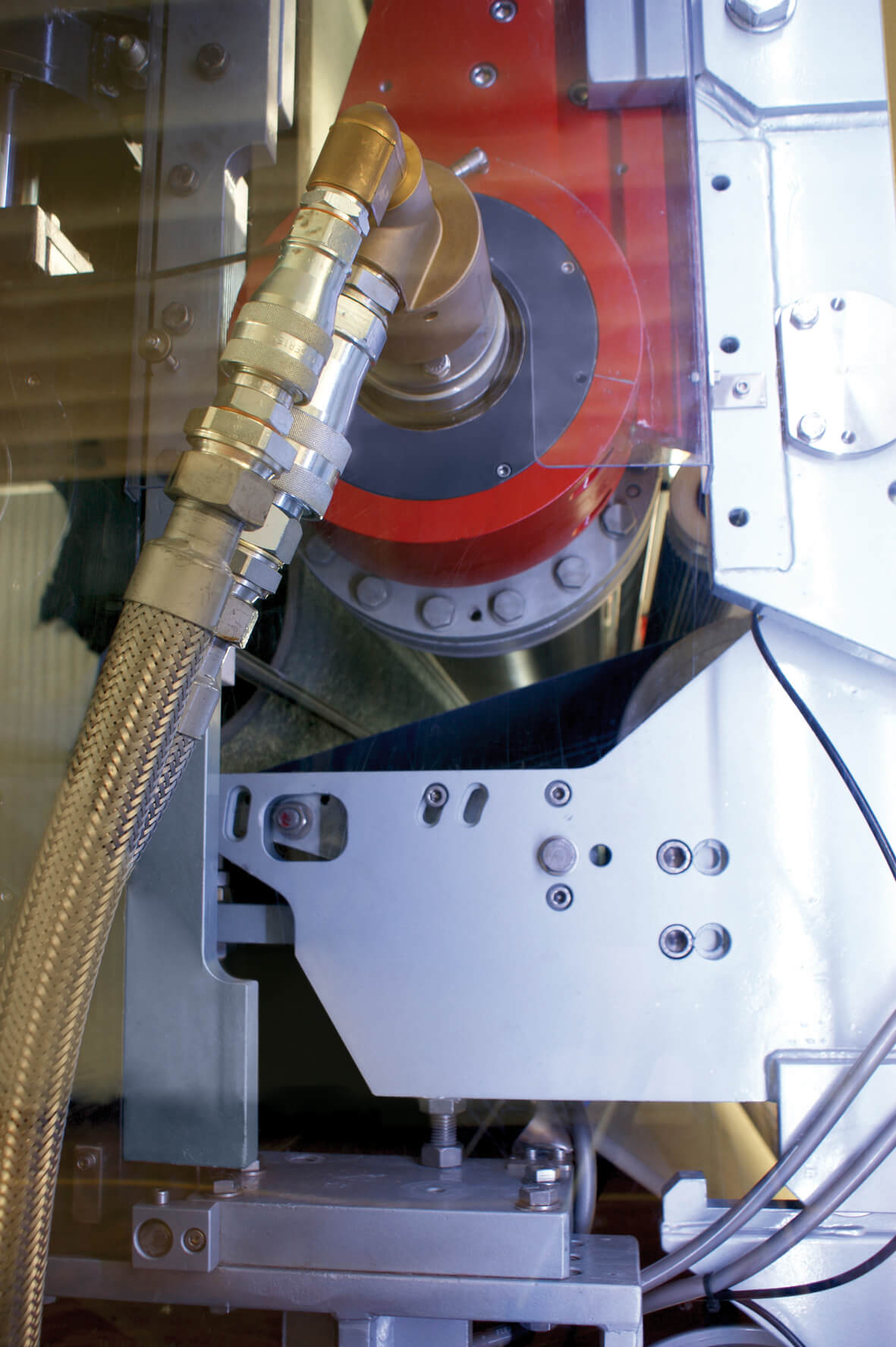

Heating cylinder Ø350
This special cylinder is heat by a dyathermic oil unit and can be realized with different shapes to obtain different effects on the grain of the leather

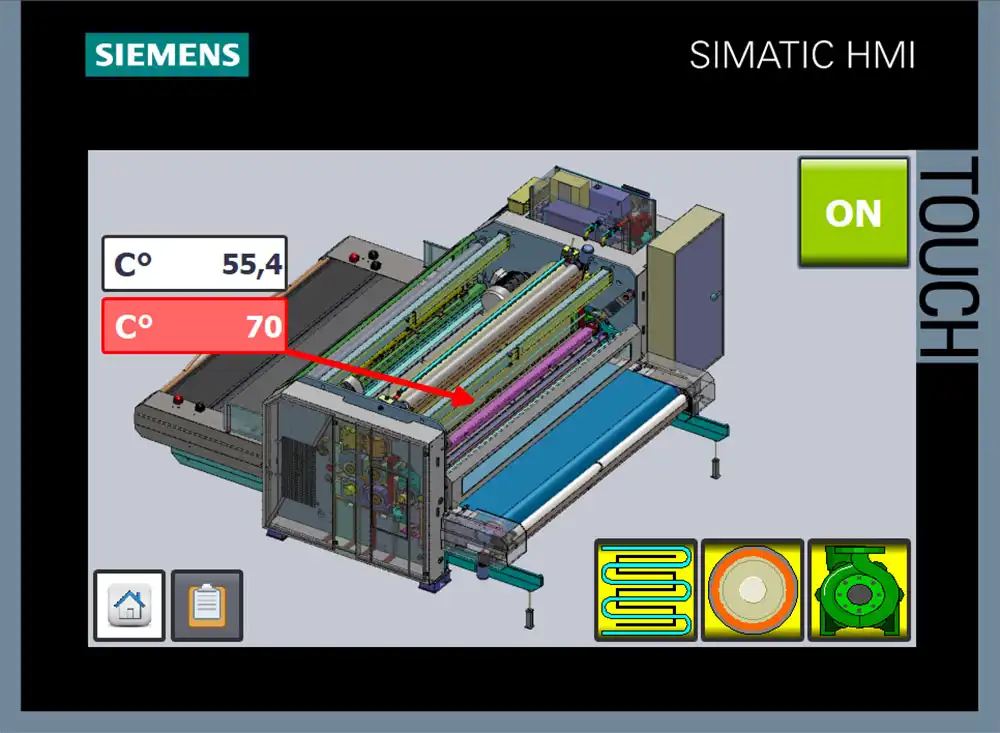

Temperature adjustment
The cylinder heating can be
adjusted by touch screen panel
Technical data
| Working width | mm | 2500 | 3100 | 3300 | 3500 |
|---|---|---|---|---|---|
| Speed | m/min | 5/17 | 5/17 | 5/17 | 5/17 |
| Installed power | Kw | 104 | 104 | 104 | 104 |
| Pressure | bar | 65 / 75 | 65 / 75 | 65 / 75 | 65 / 75 |
| Max temperature | °C | 130 | 130 | 130 | 130 |
| Diatermic oil | Kg | 80 | 97 | 103 | 110 |
| Oil | Kg | 60 | 60 | 60 | 60 |
| Pneumatic supply | bar | 6 | 6 | 6 | 6 |
| Air consumption | Lt/m | 150 | 200 | 250 | 300 |
| Water connection | bar | 2 | 2 | 2 | 2 |
| Water consumption | Lt/m | 81 | 86 | 88 | 90 |
| Deepth | mm | 5360 | 5360 | 5360 | 5360 |
| Height | mm | 2650 | 2650 | 2650 | 2650 |
| Length | mm | 4390 | 4990 | 5190 | 5390 |
| Total net weight | Kg | 18500 | 21000 | 21800 | 22500 |
| Total weight | Kg | 18600 | 21100 | 21900 | 22600 |
| Volume | m3 | 24 | 26 | 27 | 28 |
